Hotel Decorated Acoustic Folding Sound Proofing Movable Partition Wall Dividers
Who we are?
The BUNGE Movable Partition Wall is aluminum-framed operable partition is the most versatile operable wall constructed today. Partitions are a series of flat panels, approximately range from 600mm(23") to 1200mm(47") wide. They have a wide array of features and options to meet most design and budget requirements. Models are acoustically rated, available in 65mm(2.6") ,80mm(3")or 100mm(4") thick models, and in single, pair hinged configurations.
Standard Type
Movable partition wall system are 2-1/4” tongue-and-groove unitized panel system. Panels are 24” wide, precision laminated, and pre-finished with vinyl, fabric or other specified finish. Panels are manufactured at various heights up to 59’. All vertical and horizontal structural members consist of extruded aluminum components, with a snap-on base made of extruded vinyl. Panels lift into floor and ceiling tracks to form a rigid, uniform wall system that provides excellent sound transmission resistance with a STC rating of 35 to 58dB.
What is my function?
The BUNGE Movable Partition Wall is a top quality moveable wall system that allows you to optimize the use of available space with speed and ease.
Operation.
The continuously hinged panels are pulled from their parked position to ‘close’ (or extend) the wall and pushed back to the parked position to ‘open’ (or fold)the wall. Final flat alignment of wall panels is assisted pneumatically by a gas piston located in the top track. A lever or recess handle is fitted to the lead panel and this combined with a vertical rebated profile provides the system with its pass door. The door is available with or without a lock cylinder.
How to select the suitable movable wall for your site?
We have 4 types of movable wall,65type,80type,100type and 125 ultra-high type. You can choose the right movable wall upon the Height and Soundproof requirement as following:
65type-- Max height 3.5m, soundproof: 38dB to 43dB
85type- Max height:5.5m,Soundproof: 43dB to 53dB
100type--- Max height:7m,Soundproof: 43dB to 58dB
125ultra-height---Max height:17m,Soundproof: 38dB to 48dB
What you should do on site?
A beam(truss) should built on site for track installation.The min distance leaving for track installation from false ceiling to top ceiling is 200mm.
How to install?
We will provide the installation manual and video guiding the installation job. We can also dispatch the installation engineer supervising the installation as request.
What is lead time?
The lead time is 7 days to 10 days.
How to transport?
Sea transport is a common mode of transportation. In an emergency, can be air freight.
What is finishing face?
The bottom panel is MDF or plywood, which is unfinished face. You can do decoration on site, such as wallpaper, paint, etc.
We can also provide the product with finished face, such as faux wood, Woven fabric and Leather.
Product Usage:
New products 2018 innovative product construction material movable partition wall used widely,you can choose the best one by your favor.our product each piece of partition can turn aruond 360 degree which makes it flexible.
| Furnituretype partition | Using different sizes of cabinet to interior space effectively separated, increasing the residentialinterior space variability. |
| Traditional architecture partition | applications in modern architecture, just more advanced technology, and material diversity, closer to the function requirement and taste for people. |
| Modernarchitecture partition | Shaping rich personalized and high quality interior space. |
| Office partition | With traditional surround close function, more storage and display effect, not only saving office space, and can make the simple, modern office environment. |
Sound Proofing Movable Partition Walls Technics
| Panel Suspension | Top hunge system without the need for a floor track. |
| Panel Width | Each panel 600mm-1200mm. |
| Track | Aluminum OR Steel Track |
| Roller on panel | Single or Double Roller |
| Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top&bottm seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module | 700mm - 1200mm maximum. |
| Panel stacking | Numerous panel stacking options for complete flexibility. |
| Panel face | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes | Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard. |
Application:
We can add single or double doors on the board for convenience. We have many
different finish to meet customer different requirement and get different decoration
effect.

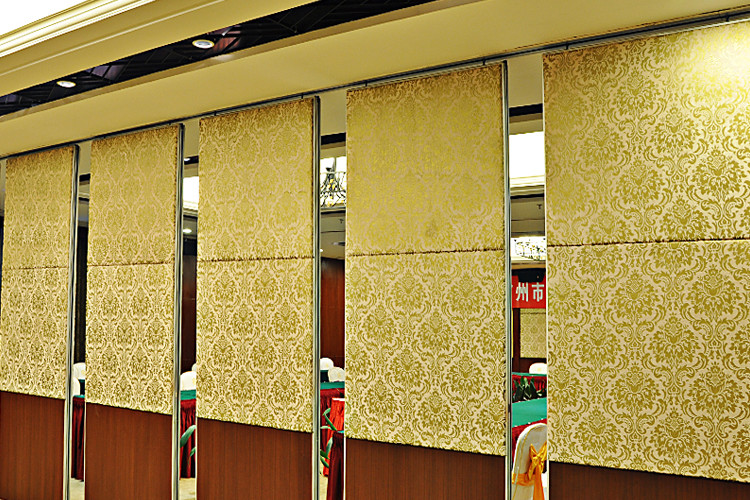

The Movable Partition is widely used in exhibition center,hotel,shopping mell,school,multi-function-hall,banquet hall,conference room and trainning room,etc.
