Banqueting Hall Soundproof Acoustic Operable Movable Wall Partitions for Gymnasium
Product Details:
| Series | Thickness (mm) | Applied height (m) | Width of Intermediate panel (m) | Acoustical reduction coefficient (db) | Hanging weight |
| 65 | 65 | 2.0~4.5 | 0.6~1.2 | 32-36 | 30kg/m2 |
| 85 | 85 | 3.0~6.8 | 0.6~1.2 | 35-45 | 35kg/m2 |
| 100 | 100 | 5.0~8.0 | 0.6~1.2 | 43-53 | 45kg/m2 |
| 125 | 125 | 7.2~13.3 | 0.6~1.2 | 53-60 | 65kg/m2 |
How to our movable partition walls work:
The movable partition walls panel is designed in tongue-groove mode and its surface finish can be made of precise laminate board,pre-finished wood veneer,fabric or other materials sprcified by customers.The movable partition wall is also equiped with vertical and horizontal external frame fabricated by extruded aluminum profiles.The retractable vinyl pressure sealsinstalled on the top and bottom of panel can tightly seal the gaps between the panel and the top and the bottom tracks,helping to form a sealed and balanced wall which blocks the propagation of the sound wave.The sound insulation effect can reach up to 35-58 db.
Specifications:
· Aluminum or steel top hung system .
· Retractable top and bottom seals ensure effortless movement of panels and sound-proof.
· Concealed or exposed panel edge profiles
· Sealed for life roller assemblies provide smooth and silent movement
· Several levels of sound reduction
· Extensive range of surface finishes available
Some advantages:
1) Good performance of sound insulation, thermal insulation and Fire prevention;
2) Save much space for your building;
3) No tracks on the floor, it’s easy to install and remove;
4) Beautiful appearance, it is widely used in many spaces, such as meeting room, dining hall, exhibition
hall, Function room and office.
| Series | BG65 | BG80 / BG85 | BG100 & BG125 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with
double rubber seals | Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied
operating handle | Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel | Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized) |
Common Applications:
BUNGE soundproof movable partition wall can be used to Convention Centers, Gymnasiums, Religious Facilities, Hotels, Auditoriums, Corporate Training Facilities, Civic or Exposition Halls, Schools, Banquet Facilities, etc.
With movable partition wall systems, there are no more barriers to maximizing the potential of your available building spaces.
Product Tags:
|
|

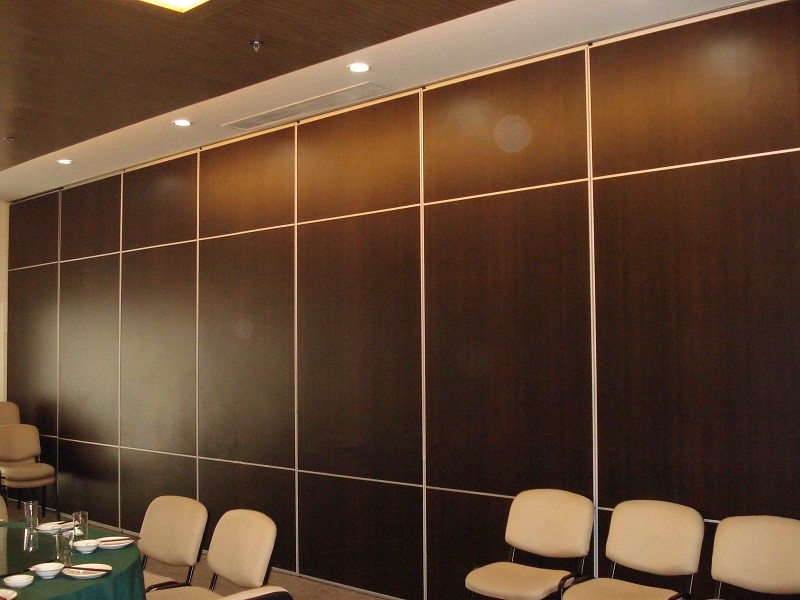

Acoustic Operable Movable Wall Partitions for Gymnasium / Banqueting Hall Images
|
