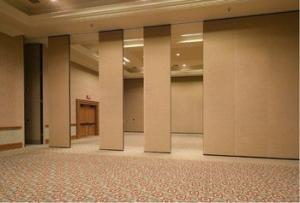

Banquet Hall 85 mm Type Sound Proofing Movable Partition Walls with No Floor Tracks

Brand Name : BANGE

Model Number : 85 mm movable partition walls

Certification : ISO9001

Place of Origin : Guangdong

MOQ : 10 square meters

Price : US Dollars 80 - 120 per square meters

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000 square meters per month

Delivery Time : 15-20 days

Packaging Details : Carton package, MDF batten on four section sides , foam board on both front face.

Open style : sliding

Product name : Movable partition walls

Feature : Sound proofing

Size : 85 mm

Color : Accept customized

Application : Office,hotel,banquet hall

Panel width : 500 mm--1230 mm

Door material : Melamine board

Surface : Melamine,leather,fabric,plywood

Position : Interior

Width : 85 mm(3 1/4 inch)

Contact Now

Banquet Hall 85 mm Type Sound Proofing Movable Partition Walls with No Floor Tracks

Specification for BUNGE movable partition walls:

BUNGE movable partition walls system is made of high quality anodized aluminum frame with environmentally composite materials.the panels move on a ceiling track with no requirement of floor guides or rails.,the panel has a standard thickness of 65mm ,80mm and 100mm,and a width up to 1219mm.Maximum height can reach 17meter tall.

The movable partition walls system consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals ,its provide excellent acoustic insulation property of from STC-32 to 53 in laboratory setting.Its high performance per dollar value and the easiest in-field operation makes it very suitable for restaurant,schools,office,religion,hospitals,shopping arcades and many other indoor applications product.

BUNGE Company works with Architects,designer,developers,contractores and owners in design product selection,decorative finishes,project management and after-sales warranty services as her one-stop solution business service.

Banquet Hall 85 mm Type Sound Proofing Movable Partition Walls with No Floor Tracks

How to select the suitable movable wall for your site?

We have 4 types of movable wall,65type,85type,100type and 125 ultra-high type. You can choose the right movable wall upon the Height and Soundproof requirement as following,

65type---Max height:4500mm,Soundproof:32dB to 45dB

85type---Max height:5500m, Soundproof:40dB to 48dB

100type--Max height:7500mm,Soundproof:43dB to 53dB

125ultra-height---Max height:12500m,Soundproof: 43dB to 53dB

What you should do on site?

A beam(truss) should built on site for track installation.The min distance leaving for track installation from false ceiling to top ceiling is 250mm.

How to install?

We will provide the installation manual and video guiding the installation job. We can also dispatch the installation engineer supervising the installation as request.

What is lead time?

The lead time is 15 days to 21 days.

How to transport?

Sea transport is a common mode of transportation. In an emergency, can be air freight.

How do the goods packing?

Corrugating paper packaging, MDF batten cover all around corner.
The movable partition wall panel and track, fittings will be packed separately.

What is Procurement procedure?

Firstly, send us the shop drawings(if the shop drawings is not available, you can tell us the height from false ceiling to finished floor and width from wall to wall)

Secondly, we offer you the movable wall layout drawings for your confirmation

Thirdly, we quote the movable wall in accordance with confirmed drawings.

What is finishing face?

The bottom panel is MDF or plywood, which is unfinished face. You can do decoration on site, such as wallpaper, paint, etc.
We can also provide the product with finished face, such as faux wood, Woven fabric and Leather.

Banquet Hall 85 mm Type Sound Proofing Movable Partition Walls with No Floor Tracks

List of Movable Partition Series Parameter
Modle
Specification (mm)
Acoustic Coefficient (dB)
Sealing Scale Range (mm)
Weight (kg/m2)
Faceplate Material
Thickness
Width
Height
65#
65
600-1230
4500
30
45
18
Melamine
34
45
22
MDF
35
45
24
Plaster Board
36
45
24
Mgo Board
38
45
26
Acoustic Panel
85#
85
600-1230
7500
38
45
26
Melamine
42
45
27
MDF
43
45
27
Plaster Board
44
45
30
Mgo Board
46
45
36
Acoustic Panel
100#
100
600-1230
9000
52
60
42
Melamine
56
60
44
MDF
57
60
44
Plaster Board
58
60
46
Mgo Board
60
60
48
Acoustic Panel
ultrahigh
100-125
600-1100
8000-16500
50-60
60
58
All Board

BUNGE movable partititon wall details

1)Thickness panel:65mm,80mm,100mm, height from 2meter to 17meter

2)Top supported without floor track or guide

3)Clear anodized extruded aluminum tracks and frames,customized powder coated color are available

4) Rock wool infill,with top and bottom retractable mechanism in the middle and mdf,plywood or plaster base board on both side

5) Sound insulation coefficien :STC 32db to 53 db, ASTM standard of acoustic tested in HongKong.

6) Available in wide range of finishes.

7) Fast delivery and Rich experiences in oversea project installation guide & supervision.
