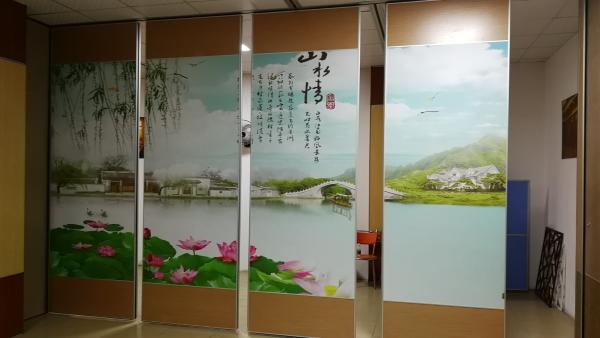

Melamine Surface Sliding Ceiling Track Roller Conference Room Sliding Wall Partition
Description:
The sliding partition is a kind of operable wall that can divide a large space into a small space or a small space into a large space at any time according to needs and has a general wall function. It can serve as a multi-purpose room with multiple functions.
The sliding partition has the characteristics of easy installation, reliability, industrial production, fire prevention, and environmental protection.
Technical information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 18000 mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single door or Double door |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
Feature:
Top hung system without the need for a floor track.
Retractable top and bottom seals ensure effortless movement of panels.
Concealed or exposed panel edge profiles.
Numerous panel stacking options for complete flexibility.
Extensive range of surface finishes available, easy construction and transportation.
The system offers various levels of sound reduction.
Combines elegance with robust construction.
Allow Customization.
Track adjustment:
1. Remember that the rails are loose enough on all brackets. Guaranteed track pause time.
2. Tighten all rail connections and adjust the rail height correctly. The rail mounting direction must also be straight and horizontal.
3. In the installation of track facilities, sound insulation and mineral wool are necessary for installation.
4. There are "L", "T" and "Ten" spurs for the track. There are left and right points for the connection of the steering. It is generally not
recommended to use the "10" spur. L and T are trimmed to their corresponding size, and their position is indicated by a numerical marker.
Sliding partition wall benifits:
Hinged pair panels for quick andeasy operation.
Robust aluminum frame construction for demanding environments.
Room divider wide range of surface finishes.
Partial and fully operating panels available.
Parition divider just only top hung supported without floor track.
We can offer:
A full professional design service.
Survey and installation guide.
Using top quality materials and components.
A fully experienced work team.
Maintenance contracts to ensure your valuable asset remains in full work order.
