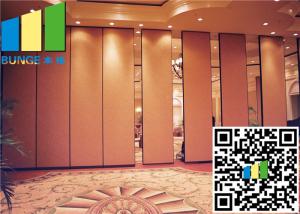

Suspended Sliding Partition Walls, 2.56inches Melamine Top Hung Movable Partition
We offer no obligation assistance in the application, selection & design of Operable wall systems. After the order has been placed and the Operable Wall installed by one of our factory trained local distributors we will remain completely dedicated to your needs and ensure that you will remain pleased with our product and service.
Specifications:
| Technical Parameter for Partition Panel | Panel Width | 24 - 48 inches |
| Panel height | 79 - 158 inches |
| Sound proof | 32 - 36 Rw |
| Operation | Manual |
| Frame | Aluminium |
| Vertical profile | Anodised aluminium profiles with integrated magnetic strip and sealing edges on the inside |
| Finish options | Fabric, veneer , HPL melamine , vinyl , carpet , customers own material , Bare finish |
| Base options | Plywood , Gypsum , steel , MDF |
| Max width | Unlimited |
| Panel weight | 25 - 40 kg / sq |
| Pass door selection | Door | Single or double door |
| Seals | Top | Manual |
| bottom | Manual |
Description :
The operable wall panel construction and finish materials shall consist of Class A rated materials in accordance with BUNGE Standards .
Operation :
Partitions shall be top supported , manually operated panels stacked in an area nominated in the plans. When closed , the operable wall shall provide a complete sound retardant barrier . No floor track shall be used .
Track :
The tracks are made from extruded 6063 – T6 anodized aluminum . The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections , and shall be reinforced overhead by drop rod brackets . Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track .
Stacking :
The panels will be stacked as per the agreed method and in accordance with the architetural plan. Centre stacking arrangement will be utilized for the subject project.
Applications :
Our products (Movable Partitions) are widely used in the hotel banquet halls , meeting rooms , exhibition halls , conference rooms , International Convention Centers , KTVs , upscale restaurants , office buildings , schools , hospitals and others .
