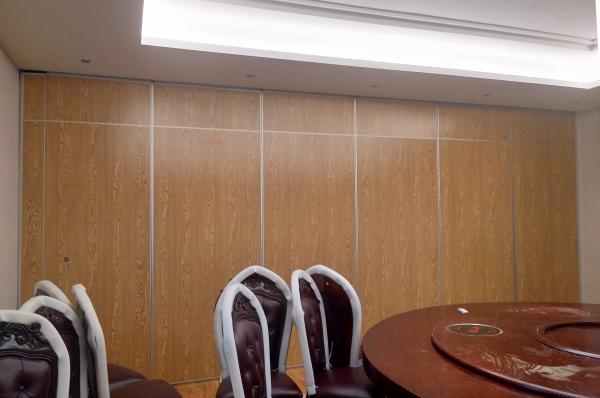

Hanging Ceiling Track Removable Sliding Door Office Acoustic Wall Partition for Banquet Hall
Specification:
Acoustic partition wall also call can move partition, move partition, orbit partition. Mobile partition has the characteristics of easy installation, reusable, industrial production, fire protection and environmental protection. Mobile partition brings great convenience to people's work, such as active screen, you are in need of it can be folded in the side, make two Spaces temporary joint and appear larger, convenient small temporary department meetings, some product USES the landless rail system, have can completely reach the effect as solid wall.
Advantage:
Long-term use: with more economy and higher decorative, beautiful and safe, will not scratch the skin.
Cost savings: installation does not affect the construction of smallpox and the ground.
Various forms: optional with a variety of occasions partition wall, can be customized according to customer requirements.
Easy combination: in the re-assembly can make full use of building materials.
Material environmental protection: selection of high-quality melamine particleboard, sound insulation and sealing a good variety of accessories a variety of options.
Feature:
Individual panels that can be stored away for maximum space utilization.
Operable top and bottom seals for effortless operation.
Isolated aluminium frame construction for enhanced acoustics.
High performance multiple in fill's for maximum sound attenuation.
Unique track and carrier system ensuring quiet and easy operation.
Numerous panel stacking options for complete flexibility.
No floor track ensuring obstruction free threshold.
Three panel sizes to accommodate a wide range of acoustic requirements .
Advantage:
Long-term use: with more economy and higher decorative, beautiful and safe, will not scratch the skin.
Cost savings: installation does not affect the construction of smallpox and the ground.
Various forms: optional with a variety of occasions partition wall, can be customized according to customer requirements.
Easy combination: in the re-assembly can make full use of building materials.
Material environmental protection: selection of high-quality melamine particleboard, sound insulation and sealing a good variety of accessories a variety of options.
Track system:
Aluminum tracks feature quiet operation, consistent shape for end-to-end alignment, selection of 2 separate ceiling officiants for ease of alignment, corrosion resistance and hard running surface for proper carrier movement. Tracks have been tested for a minimum of 10 years of use.
It uses track and trolleys on individual panels system and track and trolleys on paired panels system.
Technical Information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 18000 mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single door or Double door |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. |
Installing:
1. Before the renovation, the on-site measurement must be performed. According to the measurement data and the construction structure of the site, the design drawings shall be issued by the construction party, and the two parties shall confirm to enter the next step without any doubt.
2. Partition production is usually completed by a design company in its own factory. The installation engineering part is produced on site. Therefore, after confirming the design drawings, the requirements for glass thickness, materials, hardware accessories, and borders shall be analyzed and explained.
