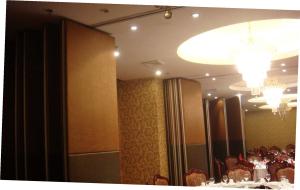

Aluminium Hanging System Sliding Room Divider Office Acoustic Partition Wall
Specification:
Movable walls are specified where functional space delineation is an integral element within the partition project. Due to their flexibility and cost effectiveness they allow large rooms to be conveniently sub-divided to maximize space insulation. Principle applications include office interiors, meeting rooms, sports and leisure facilities, schools, colleges, churches, conference and function suites, exhibition centuries, banks and restaurants.
Feature:
Hinged pair panels for quick andeasy operation.
Robust aluminum frame construction for demanding environments.
Room divider wide range of surface finishes.
Partial and fully operating panels available.
Parition divider just only top hung supported without floor track.
Acoustic partition wall structure:
To create a better sound insulation folding partition wall door, we put high density fiberglass inside the partition frame, Sourcing from imported world famous fiberglass brand Owens Corning which is the best sound insulation cotton manufacturer.
Technical information:
| TYPE | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only |
| Track system | Single or twin point |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 500 - 1200mm 1' 5/8" -- 4' | 500 - 1200mm 1' 5/8" -- 4' | 500 - 1200mm 1' 5/8" -- 4' |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
| Locking | Optional lock to passing doors |
| Passing doors | Single open in one panel or double open in two panel |
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
Aluminium track system:
Aluminum tracks feature quiet operation, consistent shape for end-to-end alignment, selection of 2 separate ceiling officiants for ease of alignment, corrosion resistance and hard running surface for proper carrier movement. Tracks have been tested for a minimum of 10 years of use.
It uses track and trolleys on individual panels system and track and trolleys on paired panels system.
We can offer:
Supply you excellent design proposal.
Supply you prompt and competitive price.
Supply you strict quality-compliance and punctual delivery.
Organize the shipment for you.
Reliable after service: timely service and efficient response.
