Brand Name : Bunge
Model Number : BG85 # movable partition wall
Certification : SGS,CE etc.
Place of Origin : China
MOQ : 10 square meters
Price : 90 / 120 dollalrs per square meter
Payment Terms : L/C, T/T, Western Union
Supply Ability : 5000square meters per month
Delivery Time : 7 to 20 work days ,it depends on the quantity
Packaging Details : Operable Resturant Partition Walls Room Dividers Precise Welding : Carton package, MDF batten on four section sides ,foam board on both front face.
Product name : Operable Resturant Partition Walls Room Dividers Precise Welding
Material : MDF + Aluminum
Color : Multe Color
Width : 500 / 1230mm
Height : 2000 / 13000mm
STC Coeffcient : 32 / 53db
Operable Resturant Partition Walls Room Dividers Precise Welding Hall
Description:
Moveable partitions are a series of individually operated panels along a track system designed for maximum space planning flexibility. They can be arranged quickly, easily and efficiently.
Wherever elegant transitions are required from one room to another and where the emphasis is on transparency in the open-plan design of living and working environments, fully glazed partitions and dividers provide an ideal incentive for architectural excellence.
Space and Sound Management with Moveable Wall Systems
BUNGE BG-65# Series
| ||||||||
Base board | Hoisting weight (kgs/㎡) | STC (db) | Structure material | Top/Bottom Telescopic mechanism(mm) | Width(mm) Min/Max | Height(mm) Min/Max | Thickness (mm) | Fire Safety |
Plywood MDF | 22-35kgs/㎡ | 32db | Aluminium | 22.5mm | 500 / 1230mm | 2000 / 4000mm | 65mm | optional class o |
Melamine Surface | ||||||||
Fabric/Leather Surface | 32db / 35db | |||||||
BUNGE BG-85# SERIES | ||||||||
Base board | Hoisting weight (kgs/㎡) | STC (db) | Structure material | Top/Bottom Telescopic mechanism(mm) | Width(mm) Min/Max | Height(mm) Min/Max | Thickness (mm) | Fire Safety |
Plywood MDF | 28-40kgs/㎡ | 38db | Aluminium | 22.5mm | 500 / 1230mm | 2000 / 6000mm | 85mm | optional class o |
Melamine Surface | ||||||||
Fabric/Leather Surface | 38db / 42db | |||||||
BUNGE BG-100# SERIES | ||||||||
Base board | Hoisting weight (kgs/㎡) | STC (db) | Structure material | Top/Bottom Telescopic mechanism(mm) | Width(mm) Min/Max | Height(mm) Min/Max | Thickness (mm) | Fire Safety |
Plywood MDF | 35-45kgs/㎡ | 45db | Aluminum | 30mm | 500 / 1230mm | 6000 / 15000mm | 100mm | optional class o |
Melamine Surface | ||||||||
Fabric/Leather Surface | 45db / 52db |
Panel Stacking of Operable Resturant Partition Walls Room Dividers Precise Welding
Specification :
1> sound proof board is modernized decoration style. It can separate the space speedly and conveniently. And it has sound insulation and heat insulation and fireproof function;
2> The Partition Board is made from high density s/s frame, special made rubber, excellent sound insulation cotton and finish board etc. the finish board is flat and hard;
3> The finish board is inserted in the aluminum track, assembled with multi direction wheels; the board can be stored in may different ways;
4> It doesn’t need track on the floor, we only hang the track on the ceilings and it can be at the same plane with the ceiling decoration. It won’t affect the whole decoration style;
5> Around the board ,there is sound insulation rubber, it can help to insulate the sound entering;
6> The operation ways is much easier, it’s better than the old ways which was use spring before;
7> We can add single or double doors on the board for convenience;
8> We have many different finish to meet customer different requirement and get different decoration effect.
![]() |

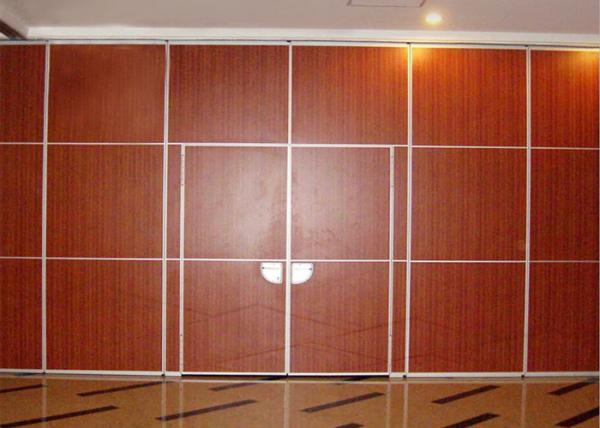

Operable Restaurant Partition Walls Room Divider Wall Precise Welding Hall Images |
