Hotel Movable Partition Walls Sound Insulation Environmental Protection

Movable Hotel Sliding Screen Folding Soundproof Partitions Wall For Banquet Hall

Partitions wall Design

The operable wall series is the highest specification range of fully operable ,individual – panel partition system .Acoustic insulation of up to 55 db noise reduction is achieved with a combination of operable top and bottom seals, high performance multiple infills and a panelassembly design that allows an acoustic break between the frame and outer layer ,The vertical channels of each panel incorporate polymer inserts that facilitate an acoustic seal when the panels are set out as a wall. Panels are produced in four thiknesses ,65mm.85mm,100mm,125mm,depending on acoustic rating (from 32db – 55db )

Advantages of Partitions wall

1: No floor track

Need not laid ground course, do not destroy whole to decorate the effect

2: Stable and firm

Each partition can be fixed independently, stable and reliable, not easy to swing

3: Sound insulation and environmental protection

Sound insulation effect is good, sound insulation coefficient can reach 50 db above

4: Heat insulation and energy saving

Excellent heat insulation performance, different seating rate pattern, the large space divided into small space

5: Efficient fire prevention

Adopt efficient fireproof material, good fireproof performance

6: Convenient collection

Close board when, partition wall can be concealed in special store ark, do not affect integral and beautiful

Partition wall detail analysis

1: Anti-skid groove is added in the single-wheel track, so that the lifting wheel can still slide smoothly under the condition of side deviation

2: Double wheel bearing 300KG

3: Rail multi-angle bevel cutting surface, no cracking using German imports inch industrial grade aluminum cutting machine cutting.45 90 180 bevel section, seamless joint using low-frequency modulation pulse MIG welding technology, no cracking.

4: Imported bearing, high speed, stable and smooth

Partition wall scene

1: Hotel partition: can be separated out of a number of boxes, standard independent space area, can give customers a private space to taste your food, talk and chat, not subject to external interference, effective partition, let consumers have a comfortable environment, is the necessary installation of today's hotel activity partition.There are hundreds of surface colors to choose from, according to the overall decoration style of the hotel to give you a professional color match

2: Banquet hall activity partition is arguably a right-hand man of catering industry, flexible and quick free segmentation space size, maximum use of limited hotel lobby space, no matter how much customers, can get the right box, to the wedding banquet, booze, small to small box, can be separated through activity partition.

3: Multi-function conference hall partition: the large space is divided into small space to reduce the power consumption of air conditioning, partition freely, promote flexible, a person can complete the whole process of partition, separated a spacious and bright conference hall.

4: The partition of the exhibition hall: there is no ground rail on the ground, and the track is installed on it. Each board can be freely closed and rotated in 360 degrees, forming a wall when you want to use it. When not in use, it is stored beside the wall, which does not affect the overall appearance.

5: Toughened glass partition: use glass as the adornment material of activity partition, the biggest characteristic of glass is to have connect appear a gender and agile space to differentiate a function namely. Tempered glass is the best choice for dividing the space without obstructing the view

movable walls on wheels

acoustic movable walls

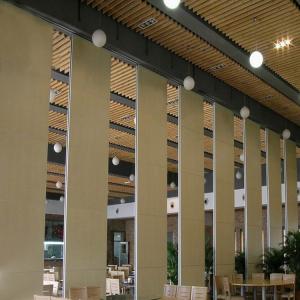

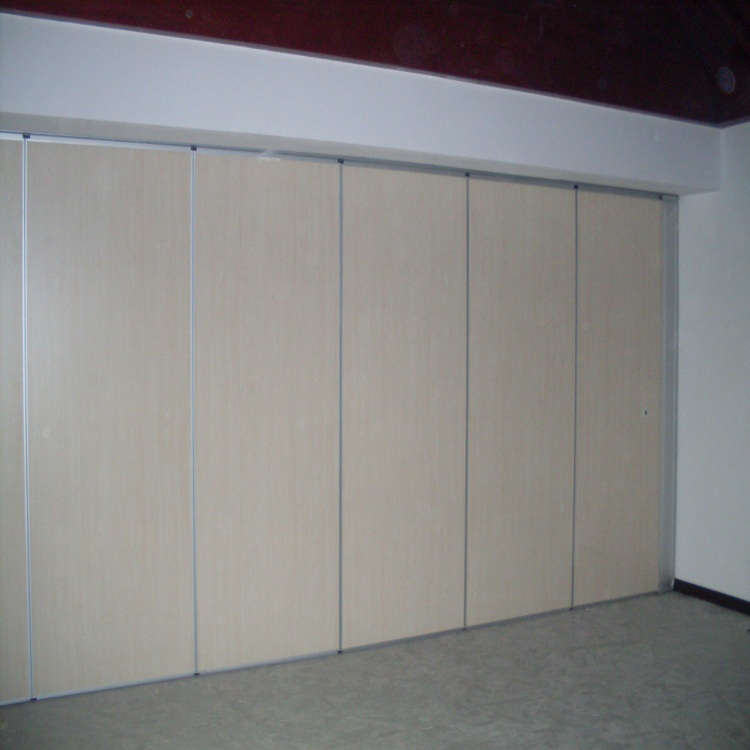

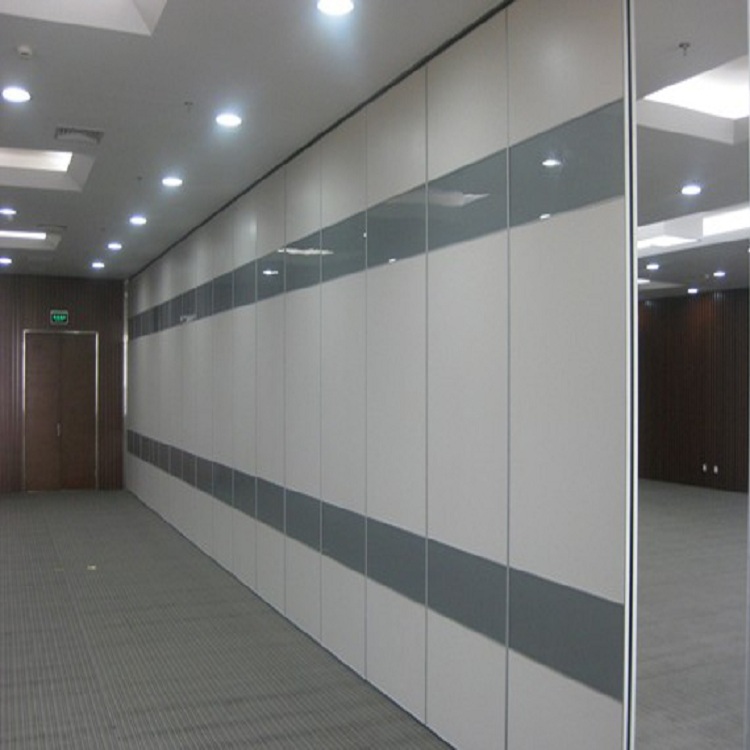

Hotel Movable Partition Walls Sound Insulation Environmental Protection Images
