Hanging System Restaurant Room Dividers Acoustic Movable Partition Walls
Movable partition walls details
On March 20th,2019, we received a nice feedback from a client who comes from Canada.

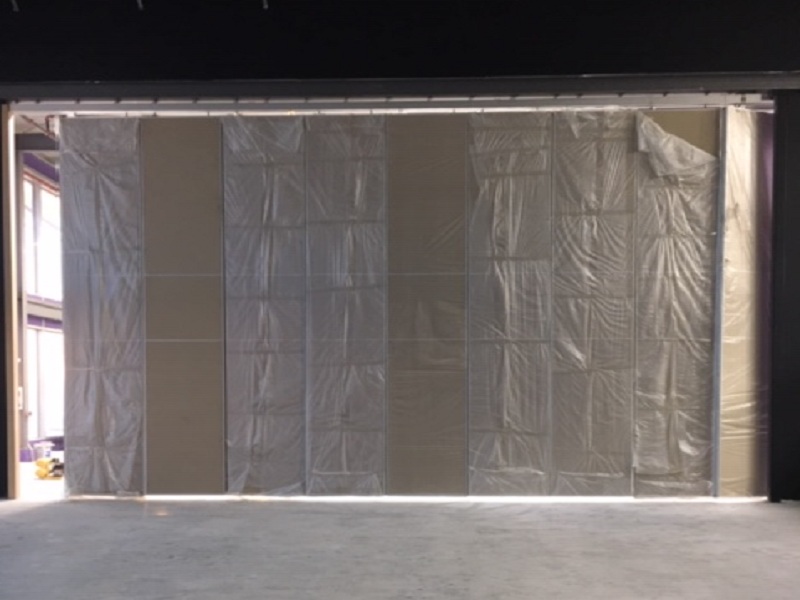

He is a contractor in charge of the project details, his engineer just installed the movable partition walls well and sent me some pictures about the project site.
Everything goes well and his client feel satisfied and happy about our partition walls.
Movable partition walls technical information
| Model | 65 Movable Partition Wall | 85 Movable Partition Wall | 100 Movable Partition Wall | Ultrahigh Movable Partition Wall |
| Panel Thickness | 65 MM | 85 MM | 100mm | 100mm |
| Panel Width | 680mm-1210mm | 680mm-1230mm | 680mm-1230mm | 680mm-1230mm |
| Panel Height | 2000mm-4500mm | 3000mm-6500mm | 5000mm-8500mm | 7000mm-17000mm |
| Frame | 6063 T6 Aluminium | 6063 T6 Aluminium | 6063 T6 Aluminium | 6063 T6 Aluminium |
| Acoustic alreduction coefficient(db) | 32db | 45db | 60db | 60db |
| Hermetic flex distance(mm) | 45mm | 45mm | 45mm | 60mm |
| Weight(kg/m) | 17,19,20,24 | 24,25,28,38 | 40,45,48,55 | 60,60,60,60 |
| Faceplate Material | Class-fibr board, Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard, Tempered glass | Class-fibr board, Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard, Tempered glass | Class-fibr board, Melamine decorative lamminate board ,Gypsum board, Color steel plate, Fiberboard, Tempered glass | Class-fibr board, Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard, Tempered glass |
| Panel Surface Finish | Anodizing, electrophoresis, Powder coating; Wooden grain or customize surface treatment | Anodizing, electrophoresis, Powder coating; Wooden grain or customize surface treatment | Anodizing, electrophoresis, Powder coating; Wooden grain or surface treatment | Anodizing, electrophoresis, Powder coating; Wooden grain or customize surface treatment |
Movable partition walls details
BUNGE movable partition walls are a series of individually operated panels along a track system designed for maximum space planning flexibility. They can be arranged quickly, easily and efficiently.
The movable wall system is tongue-and-groove unitized panel system. Panels are precision laminated, pre-finished with vinyl, fabric or other specified finish. All vertical and horizontal structural members consist of extruded aluminum components, with a snap-on base made of extruded vinyl. Panels lift into floor and ceiling tracks to form a rigid, uniform wall system that provides excellent sound transmission resistance with a STC rating of 35 to 58dB.
Movable partition walls features
◆Top hung system without the need for a floor track.
◆After installing the folding partitions,it is stable and safe,not easy to swing.
◆ Folding partitions system can separate the space speedy and conveniently.
◆Extensive range of folding partitions surface finishes can be available.
◆The folding partitions system offers various levels of sound insulation,fireproof function and heat insulation .
◆When closing the board,the folding partition walls can be hidden in the special storage cabinet,which does not affect the overall appearance.
Product Tags:
|
|
Acoustic Movable Partition Walls , Hanging System Restaurant Room Dividers Images
|
